Sandvik Coromant

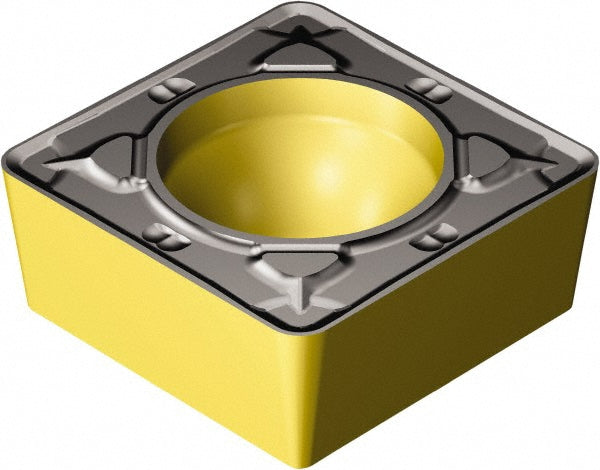

SCMT 09 T3 08-PR 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080730
MFR# 7080730ISO/ANSI# SCMT09T308Series CoroTurn 107
$16.26List $20.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeS - Square
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080730 is a SCMT 09 T3 08-PR 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Ansi insert codeSCMT32.52
Ansi size code32.52
Chip breakerPR
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle90
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeS - Square
Insert size code32.52
Insert styleSCMT
Insert thickness in5/32
Iso codeSCMT 09 T3 08-PR 4335
Iso insert codeSCMT09T308
Iso size code09T308
Manufacturer grade4335
Number of cutting edges4
Primary workpiece materialSteel
Relief angle7
Side clearancePositive
Tolerance codeM
Wiper edgeNo
