Sandvik Coromant

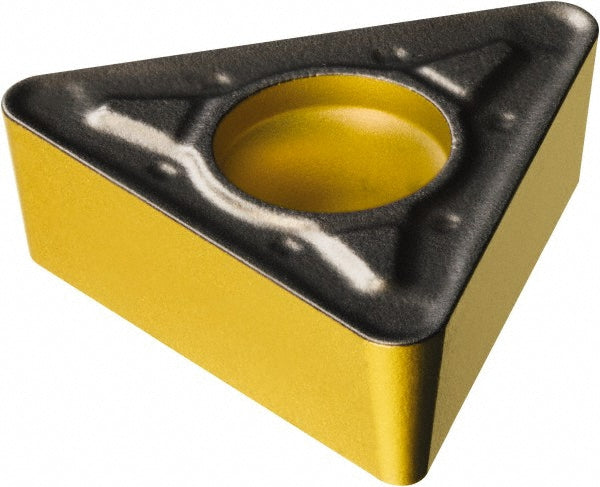

TCMT 16 T3 08-PR 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080735
MFR# 7080735ISO/ANSI# TCMT16T308Series CoroTurn 107
$19.49List $25.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080735 is a TCMT 16 T3 08-PR 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Ansi insert codeTCMT32.52
Ansi size code32.52
Chip breakerPR
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeT - Triangle
Insert size code32.52
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT 16 T3 08-PR 4335
Iso insert codeTCMT16T308
Iso size code16T308
Manufacturer grade4335
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Side clearancePositive
Tolerance codeM
Wiper edgeNo
