Sandvik Coromant

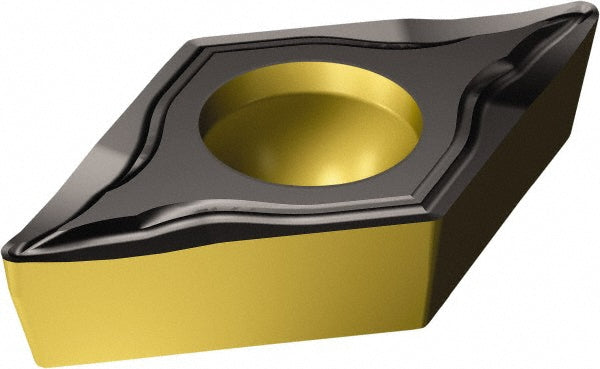

DCMT 11 T3 08-UM 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080751
MFR# 7080751ISO/ANSI# DCMT 11 T3 08-UM 4335Series CoroTurn 107
$19.91List $25.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080751 is a DCMT 11 T3 08-UM 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 11 T3 08-UM 4335
Manufacturer grade4335
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Tolerance codeM
Wiper edgeNo
