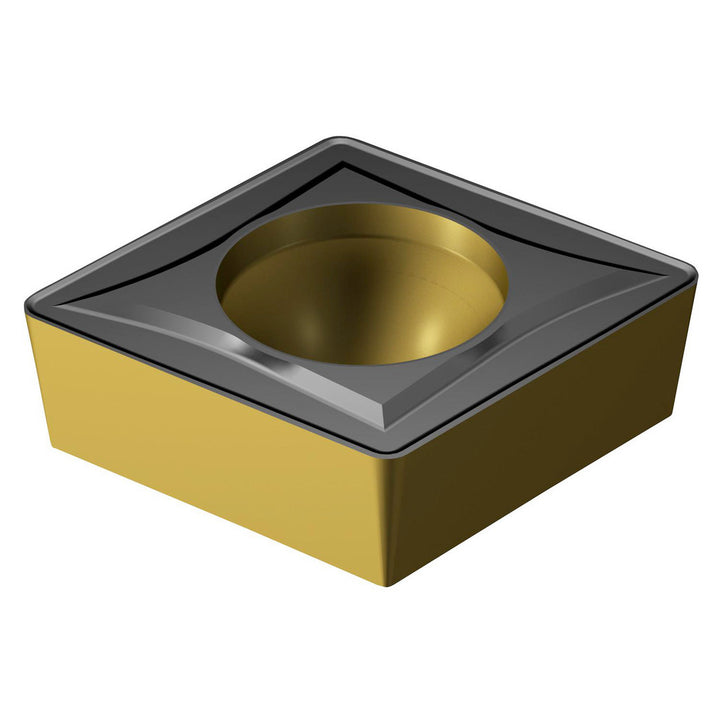

CCMT 16 05 08-UR 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080766
MFR# 7080766ISO/ANSI# CCMT 16 05 08-UR 4335Series CoroTurn 107
$29.39List $37.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080766 is a CCMT 16 05 08-UR 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Chip breakerUR
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2165
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code542
Insert styleCCMT
Insert thickness in7/32
Iso codeCCMT 16 05 08-UR 4335
Manufacturer grade4335
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Tolerance codeM
Wiper edgeNo
