Sandvik Coromant

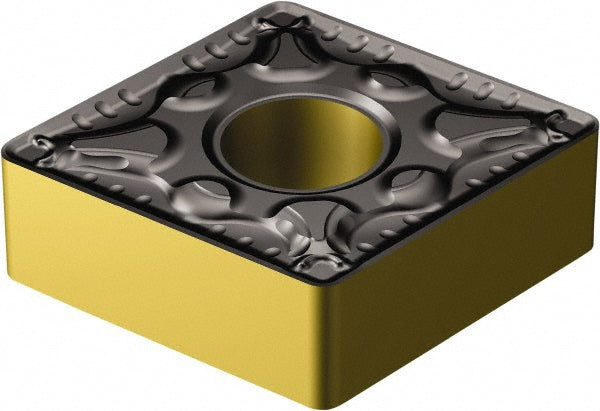

CNMG 19 06 08-PM 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080827
MFR# 7080827ISO/ANSI# CNMG 19 06 08-PM 4335Series T-Max P
$44.30List $56.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080827 is a CNMG 19 06 08-PM 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.3120
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeDiamond
Insert size code642
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 19 06 08-PM 4335
Manufacturer grade4335
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
Wiper edgeNo
