Sandvik Coromant

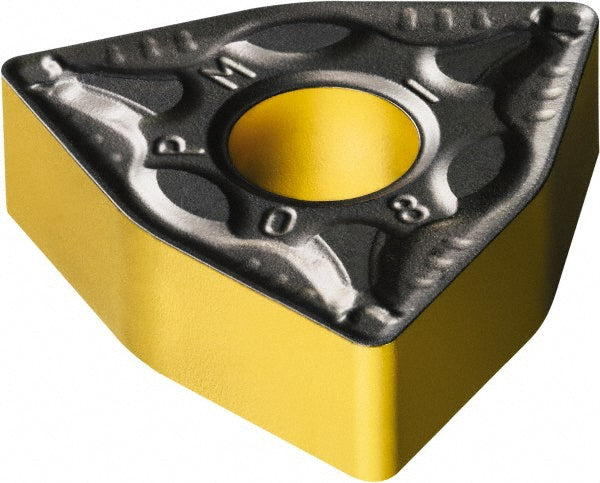

WNMG 08 04 08-PM 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080854
MFR# 7080854ISO/ANSI# WNMG 08 04 08-PM 4335Series T-Max P
$22.07List $28.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080854 is a WNMG 08 04 08-PM 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeTrigon
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 08-PM 4335
Manufacturer grade4335
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
Wiper edgeNo
