Sandvik Coromant

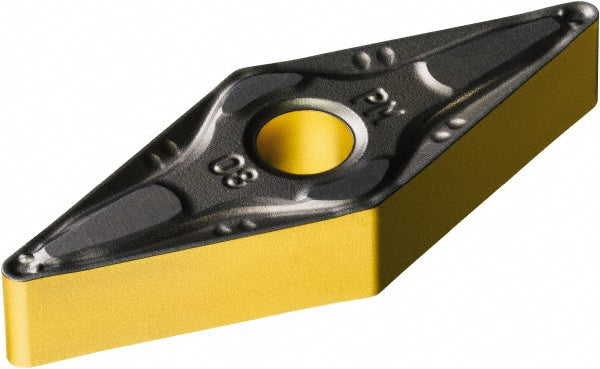

VNMG 16 04 08-PM 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080856
MFR# 7080856ISO/ANSI# VNMG 16 04 08-PM 4335Series T-Max P
$33.80List $43.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080856 is a VNMG 16 04 08-PM 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 16 04 08-PM 4335
Manufacturer grade4335
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
Wiper edgeNo
