Sandvik Coromant

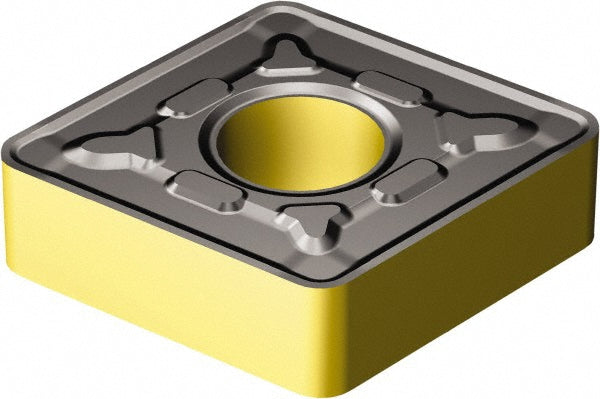

CNMG 12 04 16-PR 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080860
MFR# 7080860ISO/ANSI# CNMG120416Series T-Max P
$20.56List $25.92
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080860 is a CNMG 12 04 16-PR 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCNMG434
Ansi size code434
Chip breakerPR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code434
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 16-PR 4335
Iso insert codeCNMG120416
Iso size code120416
Manufacturer grade4335
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
