Sandvik Coromant

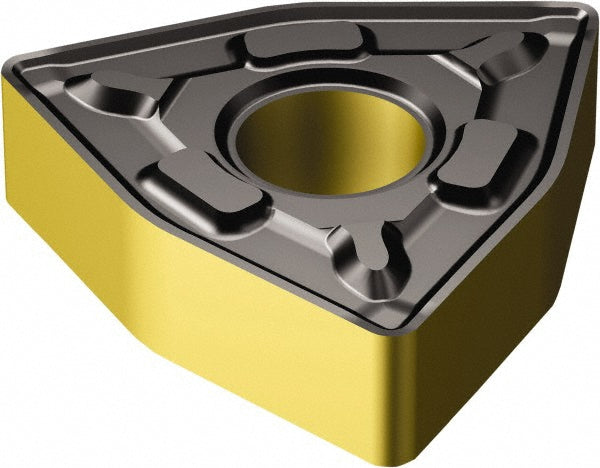

WNMG 08 04 08-PR 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080892
MFR# 7080892ISO/ANSI# WNMG080402Series T-Max P
$20.43List $26.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080892 is a WNMG 08 04 08-PR 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Ansi insert codeWNMG432
Ansi size code432
Chip breakerPR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 08-PR 4335
Iso insert codeWNMG080402
Iso size code080402
Manufacturer grade4335
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
