Sandvik Coromant

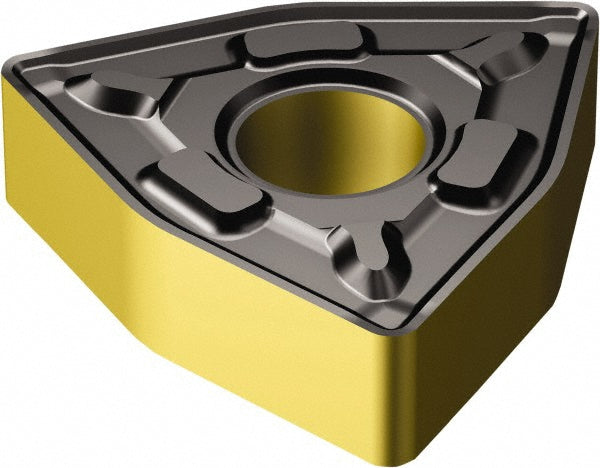

WNMG 08 04 12-PR 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080893
MFR# 7080893ISO/ANSI# WNMG 08 04 12-PR 4335Series T-Max P
$22.46List $28.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080893 is a WNMG 08 04 12-PR 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeTrigon
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 12-PR 4335
Manufacturer grade4335
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
Wiper edgeNo
