Sandvik Coromant

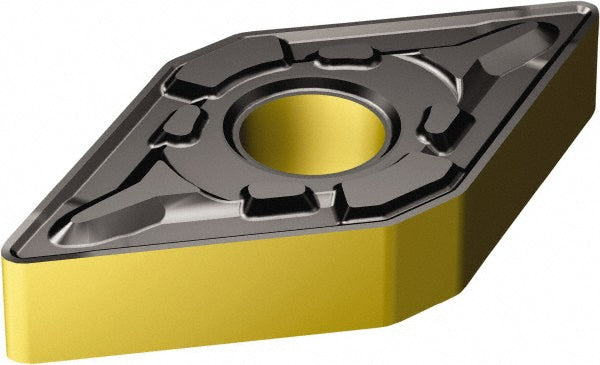

DNMG 19 06 08-PR 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080945
MFR# 7080945ISO/ANSI# DNMG190608Series T-Max P
$38.57List $49.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeD - Diamond (Rhombic) 55-Deg
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080945 is a DNMG 19 06 08-PR 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Ansi insert codeDNMG542
Ansi size code542
Chip breakerPR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2500
Included angle55
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code542
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG 19 06 08-PR 4335
Iso insert codeDNMG190608
Iso size code190608
Manufacturer grade4335
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
