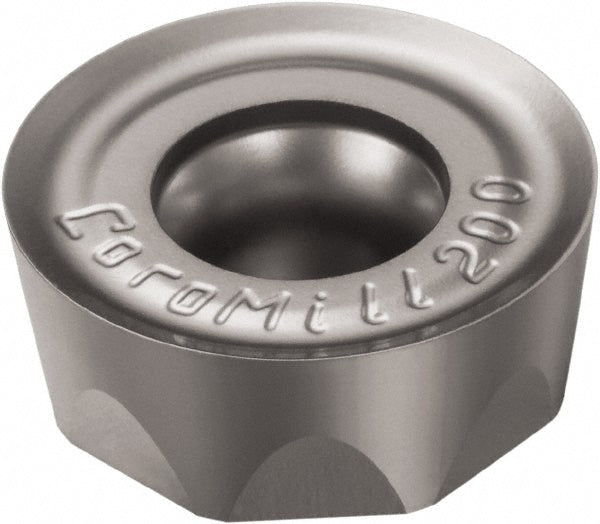

RCHT 19 06 00-PL 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7100918

Sandvik Coromant

RCHT 19 06 00-PL 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7100918

MFR# 7100918ISO/ANSI# RCHT 19 06 00-PL 1130Cat# RCHT 19 06 00-PL 1130Series RCHT

$43.79List $56.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeRound
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 7100918 is a RCHT 19 06 00-PL 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeRCHT 19 06 00-PL 1130
Chip breakerPL
Coating finishAlTiCrN
Coating processPVD
Convex radius0.3750
Corner radius0.3750
Cutter series compatibilityRA200
Cutting edge styleRounded
Hole diameter0.2559
Included angle degree360
Inscribed circle in3/4
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size19
Insert size code1906M0
Insert styleRCHT
Iso codeRCHT 19 06 00-PL 1130
Length in3/4
Length range0.7000 to 0.9000
Manufacturers catalog numberRCHT 19 06 00-PL 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.1098
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width in3/4
