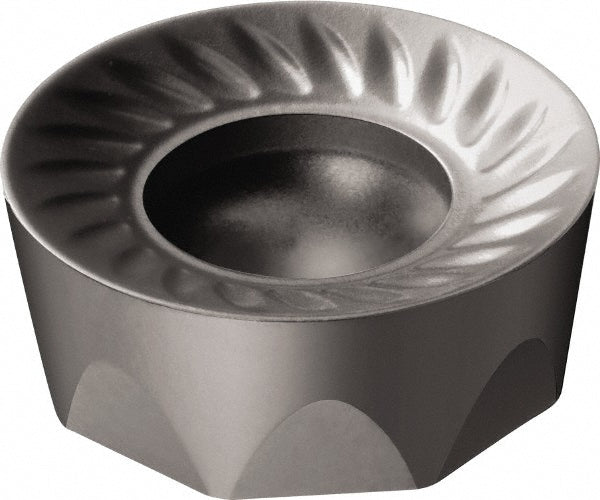

RCKT 10 T3 M0-PM 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7100923

Sandvik Coromant

RCKT 10 T3 M0-PM 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7100923

MFR# 7100923ISO/ANSI# RCKT 10 T3 M0-PM 1130Cat# RCKT 10 T3 M0-PM 1130Series RCKT

$15.37List $19.71 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 7100923 is a RCKT 10 T3 M0-PM 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeRCKT 10 T3 M0-PM 1130
Chip breakerPM
Coating finishAlTiCrN
Coating processPVD
Convex radius0.1969
Corner radius0.1969
Cutter series compatibilitySRSC; SRDC
Cutting edge styleRounded
Hole diameter0.1732
Included angle degree360
Inscribed circle0.3937
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size10
Insert size code10T3M0
Insert styleRCKT
Iso codeRCKT 10 T3 M0-PM 1130
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberRCKT 10 T3 M0-PM 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.1969
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.3937
