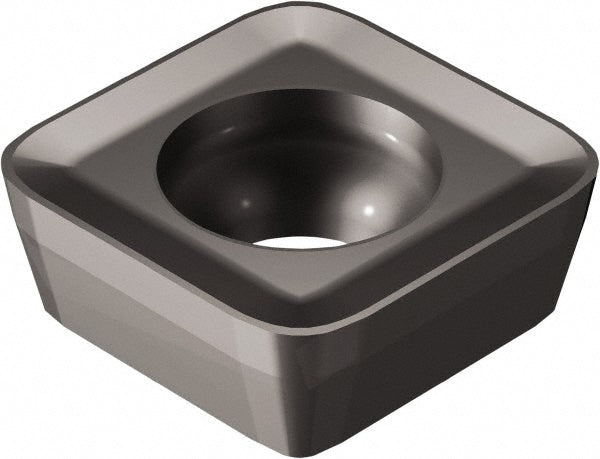

R210-09 04 14E-PM 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7100935

Sandvik Coromant

R210-09 04 14E-PM 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7100935

MFR# 7100935ISO/ANSI# R210-09 04 14E-PM 1130Cat# R210-09 04 14E-PM 1130Series R210

$26.58List $32.10 Save 17%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 7100935 is a R210-09 04 14E-PM 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeR210-09 04 14E-PM 1130
Chip breakerPM
Coating finishAlTiCrN
Coating processPVD
Corner radius0.0551
Cutter series compatibilityR210
Cutting edge styleCorner Rounded
Hole diameter0.1654
Included angle degree90
Inscribed circle0.3740
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code090414
Insert styleR210
Iso codeR210-09 04 14E-PM 1130
Length0.3740
Length range0.3200 to 0.4000
Manufacturers catalog numberR210-09 04 14E-PM 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP30; M15; N15
Maximum depth of cut0.0472
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle10
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1772
Thickness range0.1750 to 0.1850
Width0.3740
