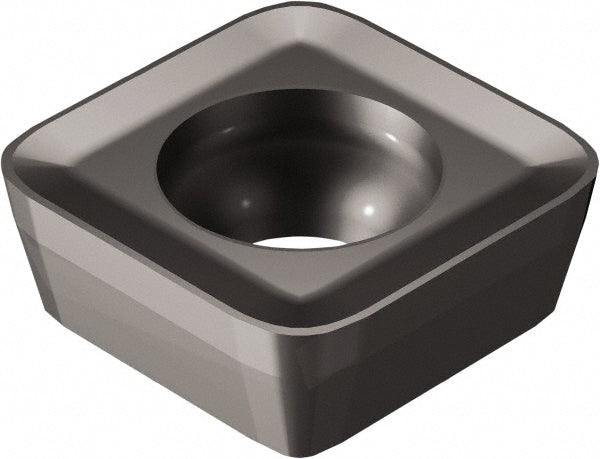

R210-14 05 14E-PM 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7100937

Sandvik Coromant

R210-14 05 14E-PM 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7100937

MFR# 7100937ISO/ANSI# R210-14 05 14E-PM 1130Cat# R210-14 05 14E-PM 1130Series R210

$32.63List $41.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 7100937 is a R210-14 05 14E-PM 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeR210-14 05 14E-PM 1130
Chip breakerPM
Coating finishAlTiCrN
Coating processPVD
Corner radius0.0551
Cutter series compatibilityR210
Cutting edge styleCorner Rounded
Hole diameter0.2244
Included angle degree90
Inscribed circle0.5748
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code140514
Insert styleR210
Iso codeR210-14 05 14E-PM 1130
Length0.5748
Length range0.5000 to 0.6000
Manufacturers catalog numberR210-14 05 14E-PM 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.0787
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle10
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2071
Thickness range0.2000 to 0.2200
Width0.5748
