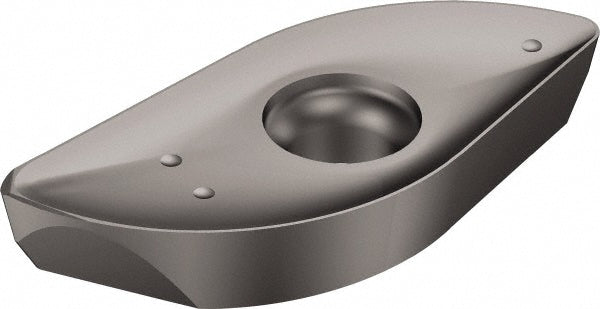

RA216-16 03 M-M 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7100959
MFR# 7100959ISO/ANSI# RA216-16 03 M-M 1130Cat# RA216-16 03 M-M 1130Series RA216
$50.78List $61.34
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeBall Nose
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN
Description
The Sandvik Coromant 7100959 is a RA216-16 03 M-M 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Ansi codeRA216-16 03 M-M 1130
Chip breakerM
Coating finishAlTiCrN
Coating processPVD
Convex radius0.3150
Cutter series compatibilityRA216
Cutting edge styleRounded
Hole diameter0.1142
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size16
Insert size code1603
Insert styleRA216
Iso codeRA216-16 03 M-M 1130
Length0.5590
Length range0.5000 to 0.6000
Manufacturers catalog numberRA216-16 03 M-M 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.5590
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
