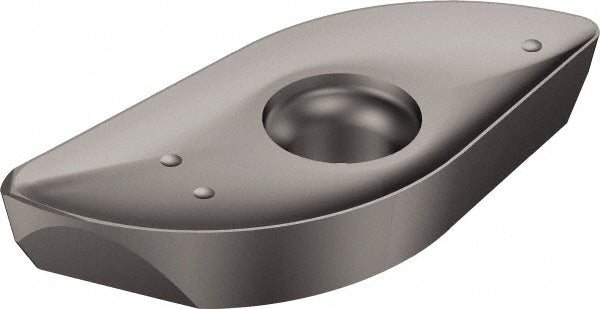

RA216-19 T3 M-M 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7100961

Sandvik Coromant

RA216-19 T3 M-M 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7100961

MFR# 7100961ISO/ANSI# RA216-19 T3 M-M 1130Cat# RA216-19 T3 M-M 1130Series RA216

$55.10List $69.44 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBall Nose
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 7100961 is a RA216-19 T3 M-M 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeRA216-19 T3 M-M 1130
Chip breakerM
Coating finishAlTiCrN
Coating processPVD
Convex radius0.3740
Cutter series compatibilityRA216
Cutting edge styleRounded
Hole diameter0.1575
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size19
Insert size code19T3
Insert styleRA216
Iso codeRA216-19 T3 M-M 1130
Length0.6690
Length range0.6500 to 0.7000
Manufacturers catalog numberRA216-19 T3 M-M 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.6690
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
