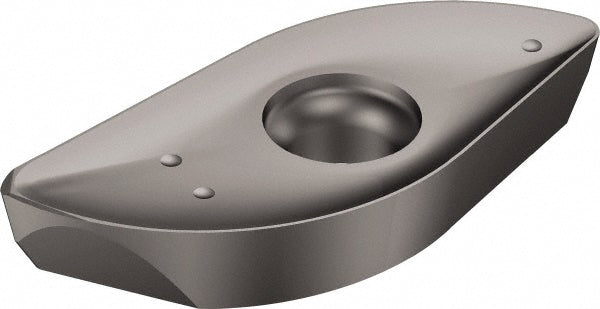

RA216-51 07 M-M 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7100967

Sandvik Coromant

RA216-51 07 M-M 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7100967

MFR# 7100967ISO/ANSI# RA216-51 07 M-M 1130Cat# RA216-51 07 M-M 1130Series RA216

$162.98List $196.56 Save 17%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBall Nose
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 7100967 is a RA216-51 07 M-M 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeRA216-51 07 M-M 1130
Chip breakerM
Coating finishAlTiCrN
Coating processPVD
Convex radius1.0039
Cutter series compatibilityRA216
Cutting edge styleRounded
Hole diameter0.3543
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size51
Insert size code5107
Insert styleRA216
Iso codeRA216-51 07 M-M 1130
Length1.7910
Length range1.0000+
Manufacturers catalog numberRA216-51 07 M-M 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut1.7910
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/16
Thickness range0.2500 to 0.3500
