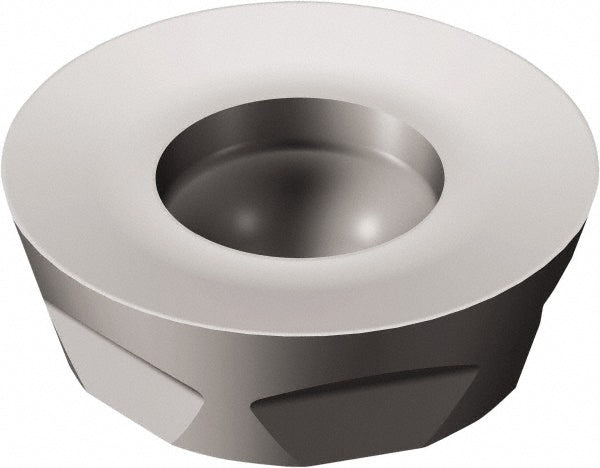

R300-1648M-PM 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7100992
MFR# 7100992ISO/ANSI# R300-1648M-PM 1130Cat# R300-1648M-PM 1130Series R300
$22.38List $28.20
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN
Description
The Sandvik Coromant 7100992 is a R300-1648M-PM 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Ansi codeR300-1648M-PM 1130
Chip breakerPM
Coating finishAlTiCrN
Coating processPVD
Convex radius0.3150
Corner radius0.3150
Cutter series compatibilityR300
Cutting edge styleRounded
Hole diameter0.2244
Included angle degree360
Inscribed circle0.6299
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size16
Insert size code1648
Insert styleR300
Iso codeR300-1648M-PM 1130
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberR300-1648M-PM 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.1575
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.6299
