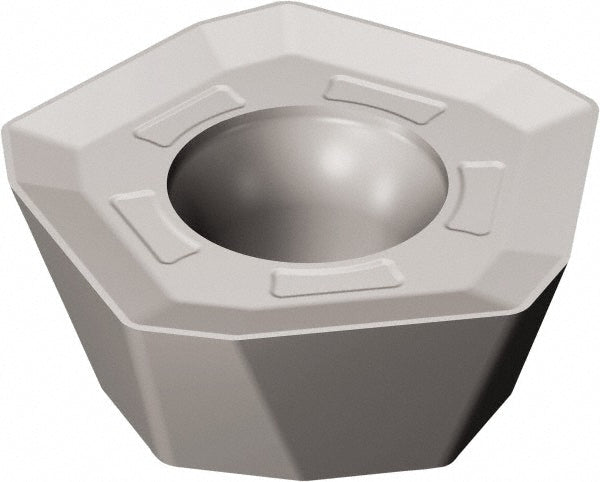

419R-1405M-PM 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7101002
MFR# 7101002ISO/ANSI# 419R-1405M-PM 1130Cat# 419R-1405M-PM 1130Series 419
$27.27List $32.70
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC17/32
ShapePentagon
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN
Description
The Sandvik Coromant 7101002 is a 419R-1405M-PM 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Ansi code419R-1405M-PM 1130
Chip breakerPM
Coating finishAlTiCrN
Coating processPVD
Corner radius in1/32
Cutter series compatibility419
Cutting edge styleCorner Rounded
Hole diameter0.2165
Included angle degree108
Inscribed circle in17/32
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapePentagon
Insert size14
Insert size code1405
Insert style419
Iso code419R-1405M-PM 1130
Length in17/32
Length range0.5000 to 0.6000
Manufacturers catalog number419R-1405M-PM 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.0787
Multi use toolYes
Number of cutting edges5
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2154
Thickness range0.2000 to 0.2200
Width in17/32
