Sandvik Coromant

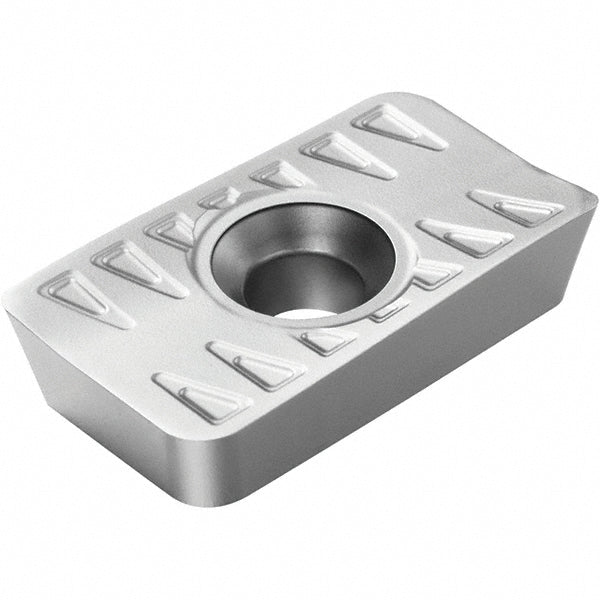

LPMH 25 06 10-PM 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7101009
MFR# 7101009ISO/ANSI# LPMH 25 06 10-PM 1130Cat# LPMH 25 06 10-PM 1130Series LPMH
$48.33List $61.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN
Description
The Sandvik Coromant 7101009 is a LPMH 25 06 10-PM 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Ansi codeLPMH 25 06 10-PM 1130
Chip breakerPM
Coating finishAlTiCrN
Coating processPVD
Corner radius in1/32
Cutting edge styleCorner Rounded
Hole diameter0.2165
Included angle degree90
Inscribed circle0.5620
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size25
Insert size code250610
Insert styleLPMH
Iso codeLPMH 25 06 10-PM 1130
Length0.8500
Length range0.7000 to 0.9000
Manufacturers catalog numberLPMH 25 06 10-PM 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.8504
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.5620
