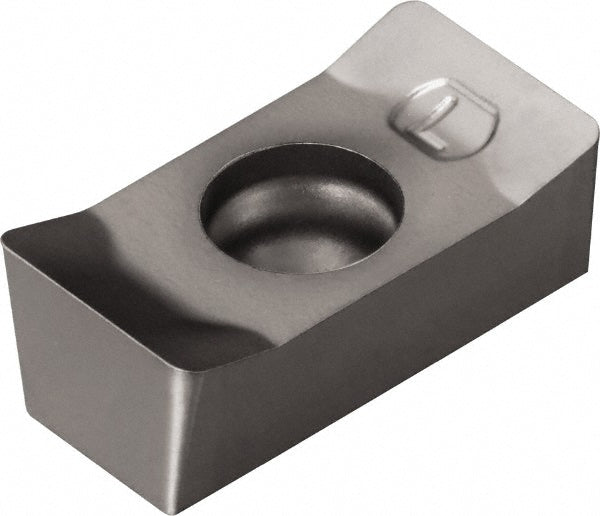

N331.1A-11 50 08H-WL1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7101035

Sandvik Coromant

N331.1A-11 50 08H-WL1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7101035

MFR# 7101035ISO/ANSI# N331.1A-11 50 08H-WL1130Cat# N331.1A-11 50 08H-WL1130Series N331.1A

$27.55List $34.72 Save 20%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC29/64
ShapeRectangle
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 7101035 is a N331.1A-11 50 08H-WL1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeN331.1A-11 50 08H-WL1130
Chip breakerWL
Coating finishAlTiCrN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityL331.52
Cutting edge styleCorner Rounded
Hole diameter0.1811
Included angle degree90
Inscribed circle in29/64
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size11
Insert size code115008
Insert styleN331.1A
Iso codeN331.1A-11 50 08H-WL1130
Length0.4213
Length range0.4000 to 0.4500
Manufacturers catalog numberN331.1A-11 50 08H-WL1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.4213
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1949
Thickness range0.1850 to 0.2000
Width in29/64
