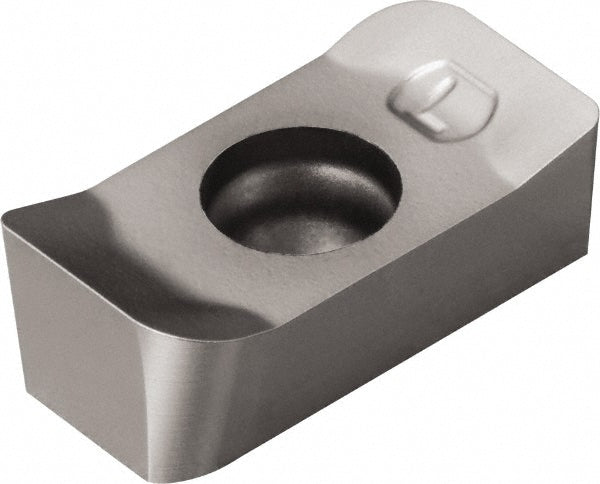

R331.1A-04 35 15H-WL1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7101043

Sandvik Coromant

R331.1A-04 35 15H-WL1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7101043

MFR# 7101043ISO/ANSI# R331.1A-04 35 15H-WL1130Cat# R331.1A-04 35 15H-WL1130Series R331.1A

$30.05List $36.29 Save 17%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 7101043 is a R331.1A-04 35 15H-WL1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeR331.1A-04 35 15H-WL1130
Chip breakerWL
Coating finishAlTiCrN
Coating processPVD
Corner radius0.0598
Cutter series compatibilityN331.32
Cutting edge styleCorner Rounded
Hole diameter0.1024
Included angle degree90
Inscribed circle0.3740
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size04
Insert size code043515
Insert styleR331.1A
Iso codeR331.1A-04 35 15H-WL1130
Length0.1811
Length range0.0000 to 0.3200
Manufacturers catalog numberR331.1A-04 35 15H-WL1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.1811
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1378
Thickness range0.1250 to 0.1500
Width0.3740
