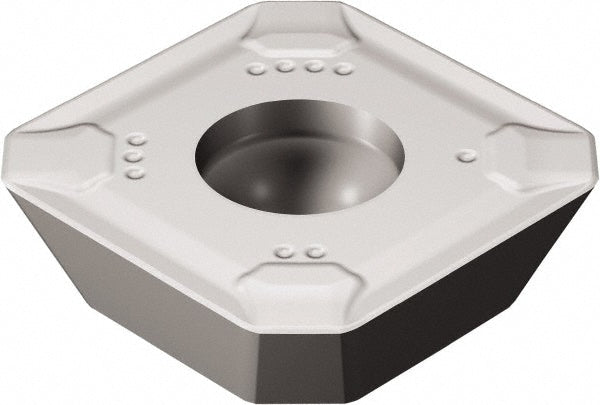

R245-18 T6 M-PM 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7101121

MFR# 7101121ISO/ANSI# R245-18 T6 M-PM 1130Cat# R245-18 T6 M-PM 1130Series R245

$30.72List $39.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 7101121 is a R245-18 T6 M-PM 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeR245-18 T6 M-PM 1130
Chip breakerPM
Coating finishAlTiCrN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityR245
Cutting edge styleCorner Rounded
Hole diameter0.2244
Included angle degree90
Inscribed circle0.7087
Inscribed circle range0.7000 to 1.0000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size18
Insert size code18T6
Insert styleR245
Iso codeR245-18 T6 M-PM 1130
Length0.7087
Length range0.7000 to 0.9000
Manufacturers catalog numberR245-18 T6 M-PM 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.3839
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle10
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2402
Thickness range0.2350 to 0.2500
Width0.7087
