Sandvik Coromant

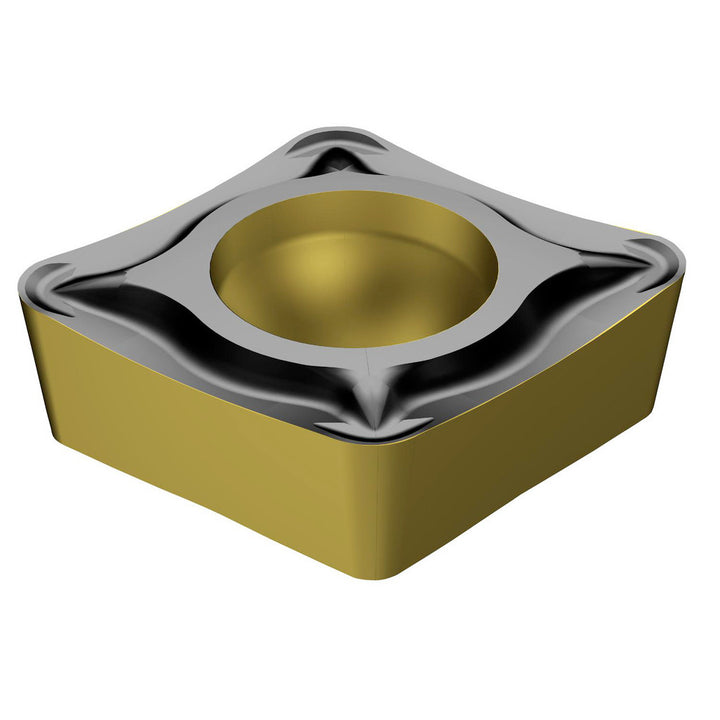

CCMT 09 T3 04-UM 2220 Carbide Insert, Grade 2220, TiCN - Sandvik Coromant 7231289
MFR# 7231289ISO/ANSI# CCMT09T304Series CoroTurn 107
$16.84List $21.22
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
Grade2220
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7231289 is a CCMT 09 T3 04-UM 2220 carbide indexable insert, grade 2220, TiCN coated. Suited for stainless steel.
Specifications
Ansi insert codeCCMT32.51
Ansi size code32.51
Chip breakerUM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 09 T3 04-UM 2220
Iso insert codeCCMT09T304
Iso size code09T304
Manufacturer grade2220
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Side clearancePositive
Tolerance codeM
Wiper edgeNo
