Sandvik Coromant

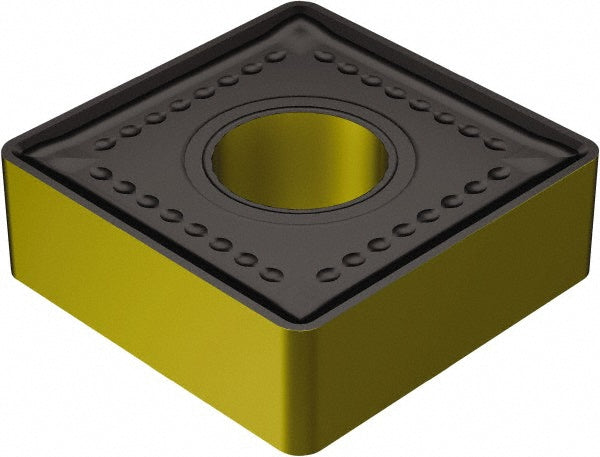

SNMM 25 09 24-MR 2220 Carbide Insert, Grade 2220, TiCN - Sandvik Coromant 7231440
MFR# 7231440ISO/ANSI# SNMM 25 09 24-MR 2220Series T-Max P
$103.58List $122.04
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1
ShapeSquare
Grade2220
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7231440 is a SNMM 25 09 24-MR 2220 carbide indexable insert, grade 2220, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/32
Hole diameter0.3590
Included angle90
Inscribed circle in1
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeSquare
Insert size code866
Insert styleSNMM
Insert thickness in3/8
Iso codeSNMM 25 09 24-MR 2220
Manufacturer grade2220
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
