Sandvik Coromant

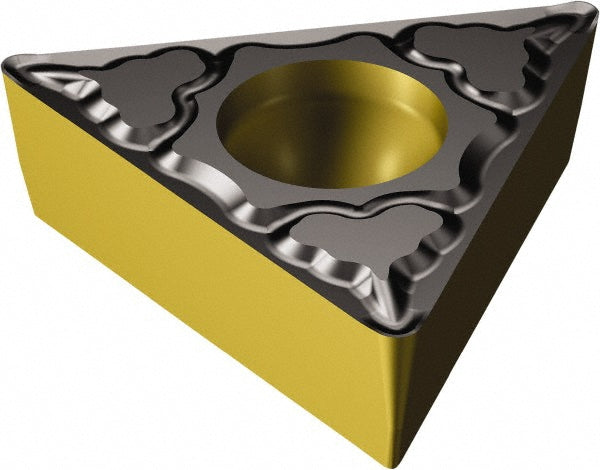

TCMT 16 T3 08-MM 2220 Carbide Insert, Grade 2220, TiCN - Sandvik Coromant 7231452
MFR# 7231452ISO/ANSI# TCMT 16 T3 08-MM 2220Series CoroTurn 107
$19.01List $23.95
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade2220
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7231452 is a TCMT 16 T3 08-MM 2220 carbide indexable insert, grade 2220, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code32.52
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT 16 T3 08-MM 2220
Manufacturer grade2220
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
