Sandvik Coromant

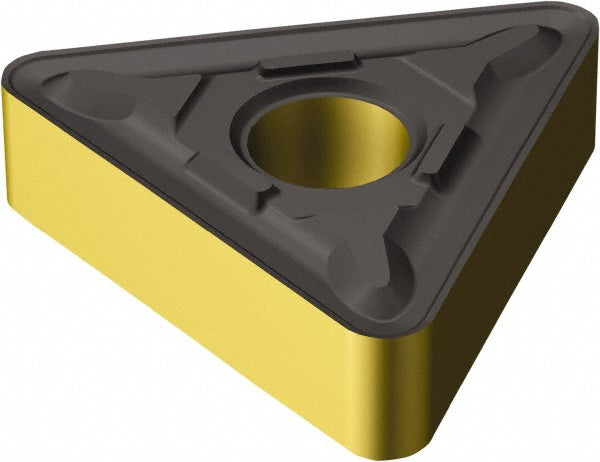

TNMG 22 04 16-MR 2220 Carbide Insert, Grade 2220, TiCN - Sandvik Coromant 7231474
MFR# 7231474ISO/ANSI# TNMG 22 04 16-MR 2220Series T-Max P
$21.64List $27.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
Grade2220
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7231474 is a TNMG 22 04 16-MR 2220 carbide indexable insert, grade 2220, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeTriangle
Insert size code434
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 22 04 16-MR 2220
Manufacturer grade2220
Relief angle0
Tolerance codeM
