Sandvik Coromant
TR-DC1304-F 2220 Carbide Insert, Grade 2220, TiCN - Sandvik Coromant 7231476
MFR# 7231476ISO/ANSI# TR-DC1304-F 2220Series CoroTurn TR
$22.40List $28.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade2220
MaterialCarbide
CoatingTiCN
Description

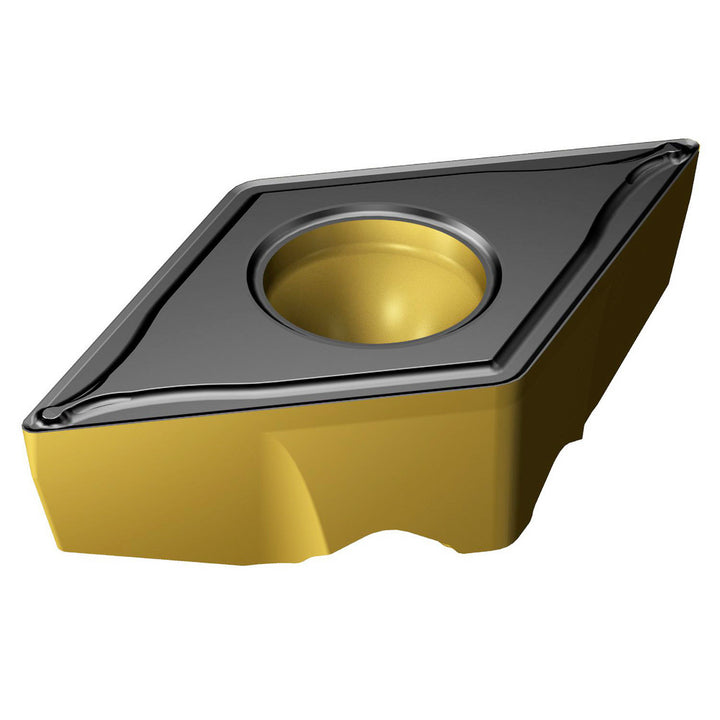

The Sandvik Coromant 7231476 is a TR-DC1304-F 2220 carbide indexable insert, grade 2220, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerF
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1457
Included angle60
Inscribed circle0.4331
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code1304
Insert styleTRDC
Insert thickness0.2175
Iso codeTR-DC1304-F 2220
Manufacturer grade2220
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Wiper edgeNo
