Sandvik Coromant

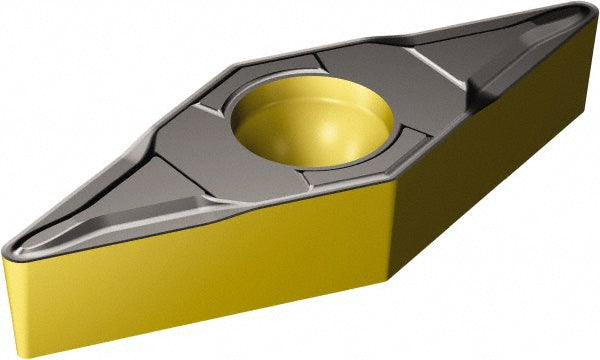

VBMT 11 03 04-MF 2220 Carbide Insert, Grade 2220, TiCN - Sandvik Coromant 7231481
MFR# 7231481ISO/ANSI# VBMT 11 03 04-MF 2220Series CoroTurn 107
$24.08List $30.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade2220
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7231481 is a VBMT 11 03 04-MF 2220 carbide indexable insert, grade 2220, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code221
Insert styleVBMT
Insert thickness in1/8
Iso codeVBMT 11 03 04-MF 2220
Manufacturer grade2220
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle5
Tolerance codeM
Wiper edgeNo
