Sandvik Coromant

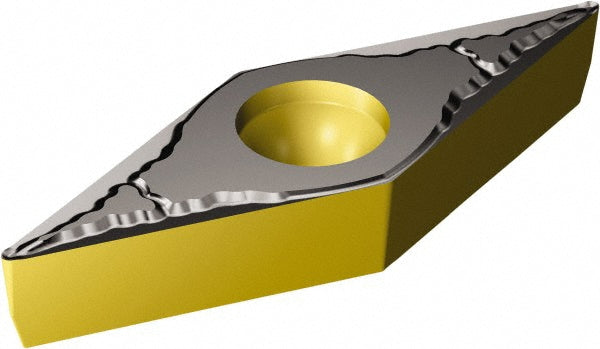

VBMT 16 04 08-MM 2220 Carbide Insert, Grade 2220, TiCN - Sandvik Coromant 7231487
MFR# 7231487ISO/ANSI# VBMT 16 04 08-MM 2220Series CoroTurn 107
$24.71List $31.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade2220
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7231487 is a VBMT 16 04 08-MM 2220 carbide indexable insert, grade 2220, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT 16 04 08-MM 2220
Manufacturer grade2220
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle5
Tolerance codeM
Wiper edgeNo
