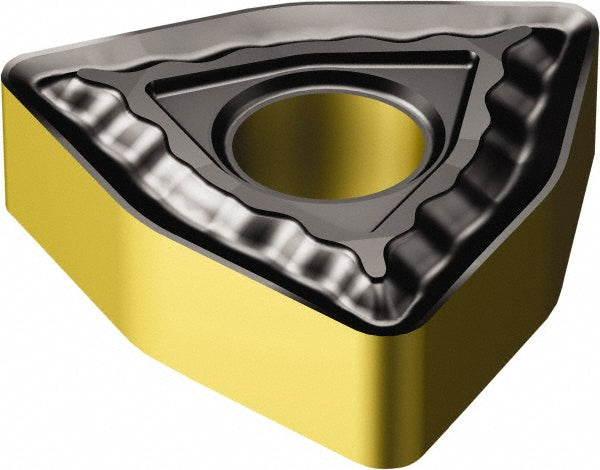

WNMG 08 04 08-QM 2220 Carbide Insert, Grade 2220, TiCN - Sandvik Coromant 7231504
MFR# 7231504ISO/ANSI# WNMG 08 04 08-QM 2220Series T-Max P
$21.18List $27.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade2220
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7231504 is a WNMG 08 04 08-QM 2220 carbide indexable insert, grade 2220, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerQM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeTrigon
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 08-QM 2220
Manufacturer grade2220
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
