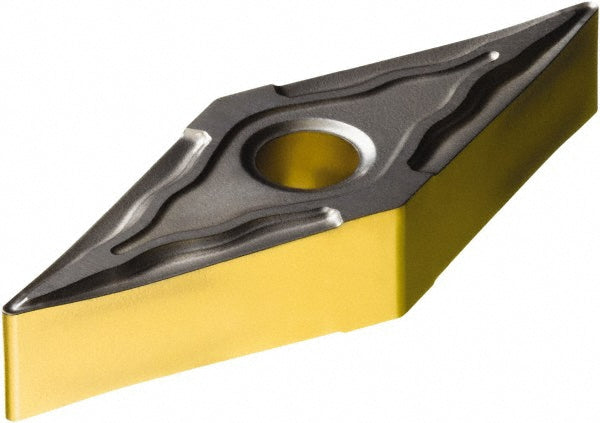

VNMG 16 04 04-MF 2220 Carbide Insert, Grade 2220, TiCN - Sandvik Coromant 7231511

Sandvik Coromant

VNMG 16 04 04-MF 2220 Carbide Insert, Grade 2220, TiCN - Sandvik Coromant 7231511

MFR# 7231511ISO/ANSI# VNMG 16 04 04-MF 2220Series T-Max P

$32.97List $41.55 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
Grade2220
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 7231511 is a VNMG 16 04 04-MF 2220 carbide indexable insert, grade 2220, TiCN coated. Suited for stainless steel.

Specifications

Chip breakerMF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 16 04 04-MF 2220
Manufacturer grade2220
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
