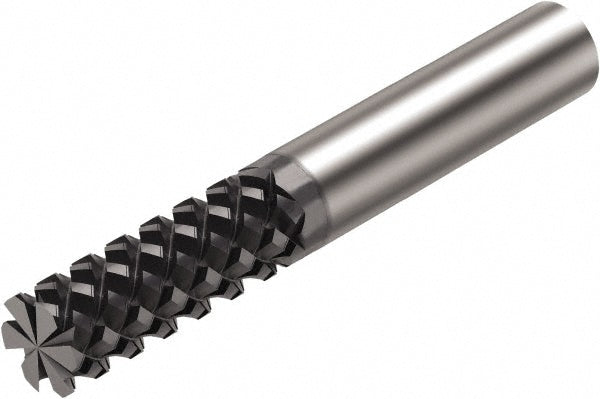

1/4" 5-Flute Solid Carbide Square End Mill, Diamond - Sandvik Coromant 7254439

Sandvik Coromant

1/4" 5-Flute Solid Carbide Square End Mill, Diamond - Sandvik Coromant 7254439

MFR# 7254439Series CoroMill® Plura solid carbide end mill for Edging applications

$259.38List $325.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes5
MaterialSolid Carbide
CoatingDiamond

Description

The Sandvik Coromant 7254439 is a 1/4 5-flute Solid Carbide (O12M) square end mill with a Diamond finish for longer tool life. 3/4 length of cut, 2-1/2 overall length. Series CoroMill® Plura solid carbide end mill for Edging applications.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishDiamond
Coating finish familyDiamond
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in3/4
Material gradeO12M
Mill diameter in1/4
Number of flutes5
Overall length in2-1/2
Shank diameter in1/4
Single or double endSingle
System of measurementFractional Inch
