Sandvik Coromant
Indexable Milling Cutters - Sandvik Coromant 7295445
MFR# 7295445Cat# R331.35C-038M25CMA04Series CoroMill 331
$784.10List $833.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Cutter dia.1-1/2
Description

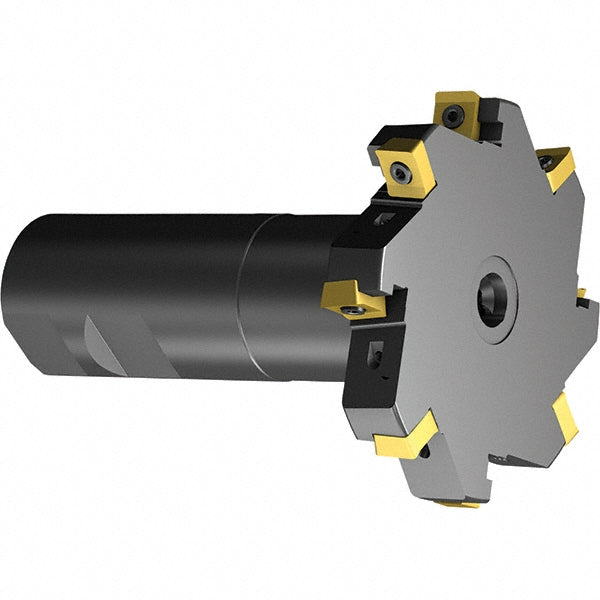

The Sandvik Coromant 7295445 indexable milling cutters. Series CoroMill 331.
Specifications
Compatible insert size codeSize 04
Compatible insert styleCoroMill 331 -size 04 (N/R331.1A-04RE0.20-1.54)
Complete insert compatibilityCoroMill 331 -size 04 (N/R331.1A-04RE0.20-1.54)
Connection typeWeldon
Coolant throughYes
Cutter body width0.2500
Cutter diameter in1-1/2
Cutting directionRight Hand
Cutting width in1/4
Hole diameter in1
Insert holding methodScrew
Manufacturers catalog numberR331.35C-038M25CMA04
Maximum body diameter1.5000
Maximum depth of cut0.4090
Maximum rpm30000
Number of cutter inserts4
Number of teeth2
Overall height4.1400
Shank diameter in1
Toolholder styleCoroMill 331
Tool applicationMilling
Tool materialSteel
Weldon flatYes
