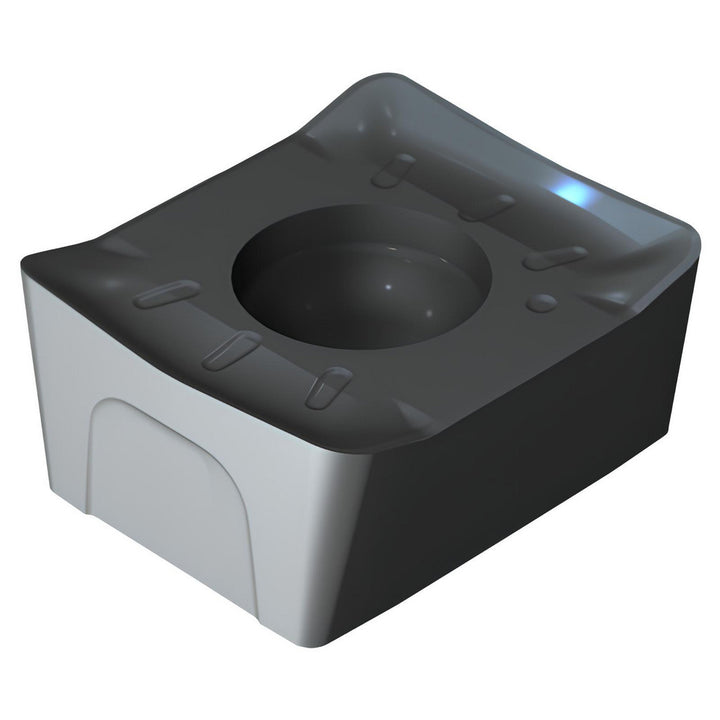

N331.1A-043505E-L50 S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 7295501

Sandvik Coromant

N331.1A-043505E-L50 S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 7295501

MFR# 7295501ISO/ANSI# N331.1A-043505E-L50 S30TCat# N331.1A-043505E-L50 S30TSeries N331.1A

$30.46List $38.39 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeS30T
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 7295501 is a N331.1A-043505E-L50 S30T solid carbide indexable insert, grade S30T, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeN331.1A-043505E-L50 S30T
Chip breakerL50
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityN331.32
Cutting edge styleCorner Rounded
Hole diameter0.1024
Included angle degree90
Inscribed circle0.3740
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size04
Insert size code043505
Insert styleN331.1A
Iso codeN331.1A-043505E-L50 S30T
Length0.1811
Length range0.0000 to 0.3200
Manufacturers catalog numberN331.1A-043505E-L50 S30T
Manufacturer gradeS30T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM25; S25
Maximum depth of cut0.1811
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle13
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1373
Thickness range0.1250 to 0.1500
Width0.3740
