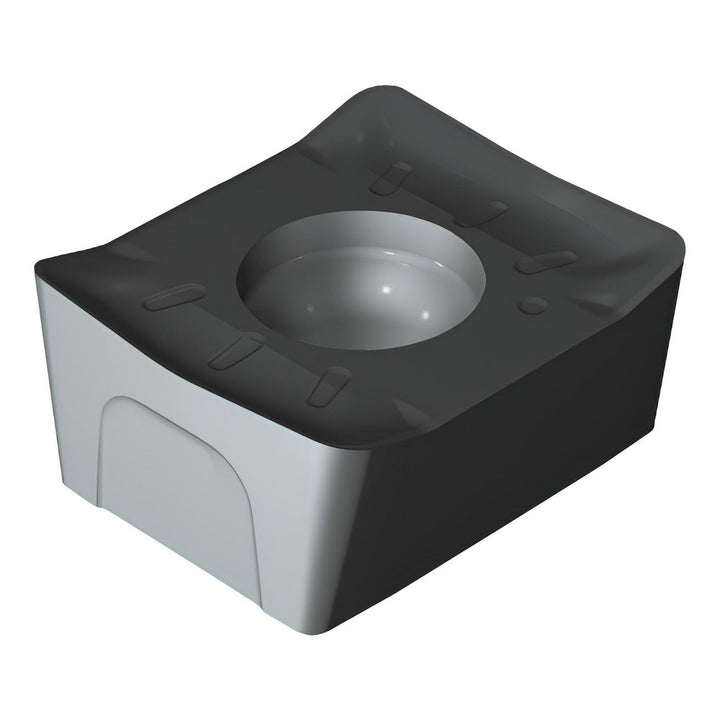

N331.1A-054508E-L30 S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 7295507

Sandvik Coromant

N331.1A-054508E-L30 S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 7295507

MFR# 7295507ISO/ANSI# N331.1A-054508E-L30 S30TCat# N331.1A-054508E-L30 S30TSeries N331.1A

$24.96List $32.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeS30T
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 7295507 is a N331.1A-054508E-L30 S30T solid carbide indexable insert, grade S30T, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeN331.1A-054508E-L30 S30T
Chip breakerL30
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityN331.32
Cutting edge styleCorner Rounded
Hole diameter0.1142
Included angle degree90
Inscribed circle0.3740
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size05
Insert size code054508
Insert styleN331.1A
Iso codeN331.1A-054508E-L30 S30T
Length0.2244
Length range0.0000 to 0.3200
Manufacturers catalog numberN331.1A-054508E-L30 S30T
Manufacturer gradeS30T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM25; S25
Maximum depth of cut0.2244
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle17
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1768
Thickness range0.1750 to 0.1850
Width0.3740
