Sandvik Coromant

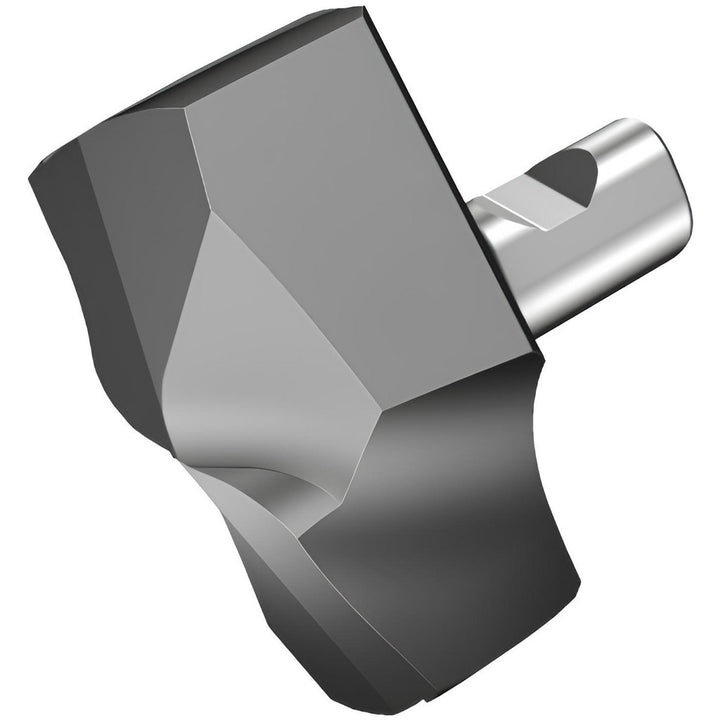

Carbide Insert, Grade 4334, TiAlN - Sandvik Coromant 7357693
MFR# 7357693Series CoroDrill 870
$152.44List $166.32
Save 8%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Grade4334
CoatingTiAlN
Description
The Sandvik Coromant 7357693 is a carbide indexable insert, grade 4334, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.
Specifications
ApplicationsSolidDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in17/32
Drill point angle152
Flute length (mm)6.00
Flute typeHelical
Functional length0.2382
Height (mm)7.00
Included angle degree152
Insert geometryGP
Insert holding methodClamp
Insert seat size13
Iso number870-1350-13-GP 4334
Manufacturer grade4334
Material gradeFine Grain
Number of flutes2
Overall length projection0.2953
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleCoroDrill 870
Tip materialSolid Carbide
