Sandvik Coromant

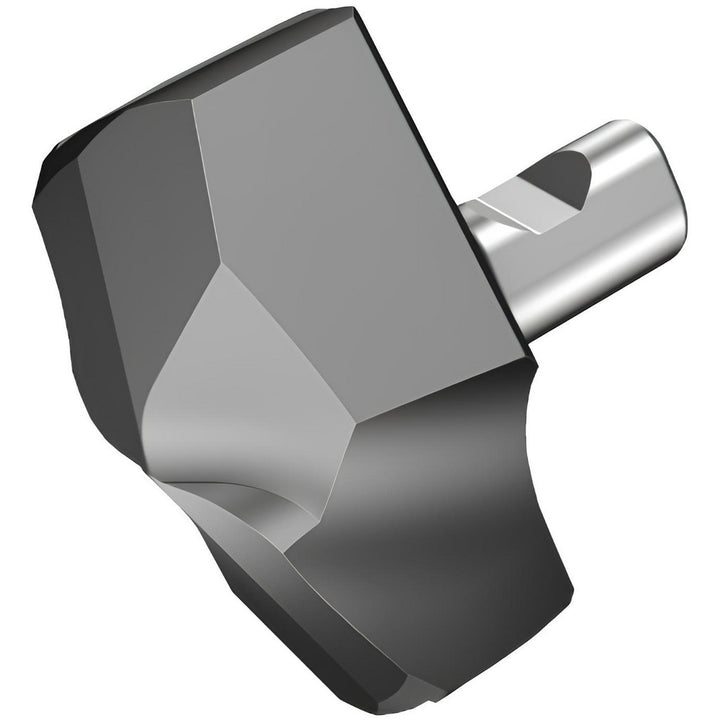

Carbide Insert, Grade 3334, AlTiCrN - Sandvik Coromant 7357726
MFR# 7357726Series CoroDrill 870
$164.73List $179.28
Save 8%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Grade3334
CoatingAlTiCrN
Description
The Sandvik Coromant 7357726 is a carbide indexable insert, grade 3334, AlTiCrN coated. Suited for steel, cast iron.
Specifications
ApplicationsSolidDrilling
Coating finishAlTiCrN
Coating processPVD
Coolant throughNo
Cutting diameter in9/16
Drill point angle142
Flute length (mm)6.00
Flute typeHelical
Functional length0.2402
Height (mm)9.00
Included angle degree142
Insert geometryKM
Insert holding methodClamp
Insert seat size14
Iso number870-1429-14-KM 3334
Manufacturer grade3334
Material gradeFine Grain
Number of flutes2
Overall length projection0.3426
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Spiral typeRegular Spiral
StyleCoroDrill 870
Tip materialSolid Carbide
