Sandvik Coromant

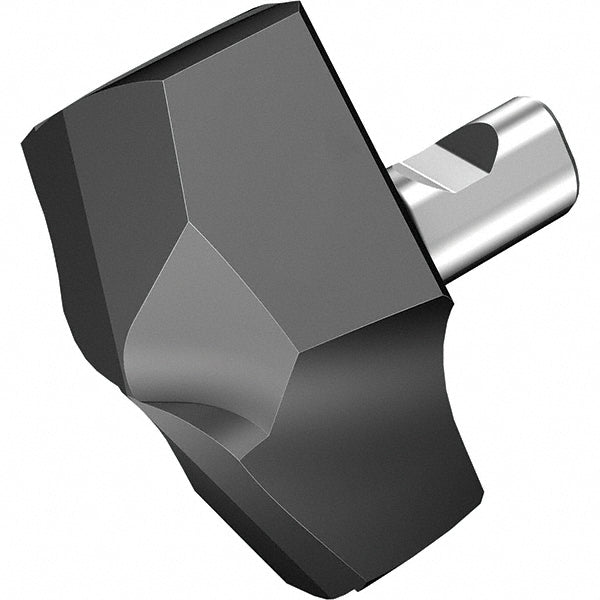

Carbide Insert, Grade 2334, AlTiCrN - Sandvik Coromant 7358013
MFR# 7358013Series CoroDrill 870
$180.82List $227.88
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Grade2334
CoatingAlTiCrN
Description
The Sandvik Coromant 7358013 is a carbide indexable insert, grade 2334, AlTiCrN coated. Suited for stainless steel, superalloys & titanium.
Specifications
ApplicationsSolidDrilling
Coating finishAlTiCrN
Coating processPVD
Coolant throughNo
Cutting diameter in13/16
Drill point angle142
Flute length (mm)9.00
Flute typeHelical
Functional length0.3689
Height (mm)12.00
Included angle degree142
Insert geometryMM
Insert holding methodClamp
Insert seat size20
Iso number870-2064-20-MM 2334
Manufacturer grade2334
Material gradeFine Grain
Number of flutes2
Overall length projection0.4921
Point typeStandard
Primary workpiece materialStainless Steel; Superalloys & Titanium
Spiral typeRegular Spiral
StyleCoroDrill 870
Tip materialSolid Carbide
