Sandvik Coromant
Carbide Insert, Grade 2334, AlTiCrN - Sandvik Coromant 7358037
MFR# 7358037Series CoroDrill 870
$177.68List $227.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Grade2334
CoatingAlTiCrN
Description

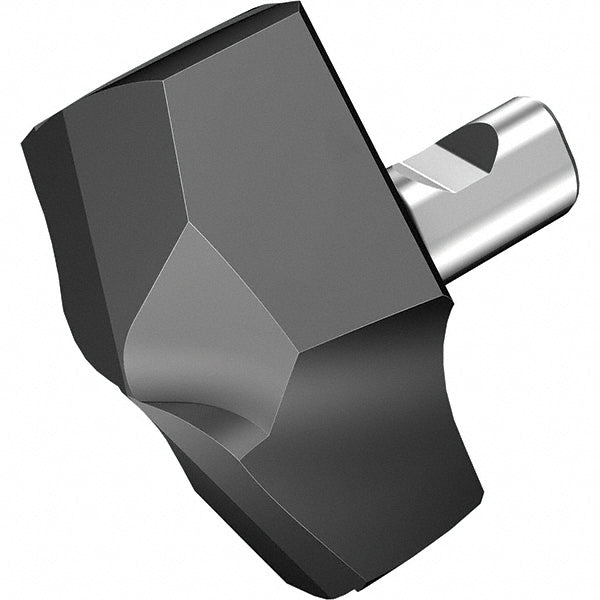

The Sandvik Coromant 7358037 is a carbide indexable insert, grade 2334, AlTiCrN coated. Suited for stainless steel, superalloys & titanium.
Specifications
ApplicationsSolidDrilling
Coating finishAlTiCrN
Coating processPVD
Coolant throughNo
Cutting diameter0.8346
Drill point angle142
Flute length (mm)10.00
Flute typeHelical
Functional length0.3937
Height (mm)13.00
Included angle degree142
Insert geometryMM
Insert holding methodClamp
Insert seat size21
Iso number870-2120-21-MM 2334
Manufacturer grade2334
Material gradeFine Grain
Number of flutes2
Overall length projection0.5197
Point typeStandard
Primary workpiece materialStainless Steel; Superalloys & Titanium
Spiral typeRegular Spiral
StyleCoroDrill 870
Tip materialSolid Carbide
