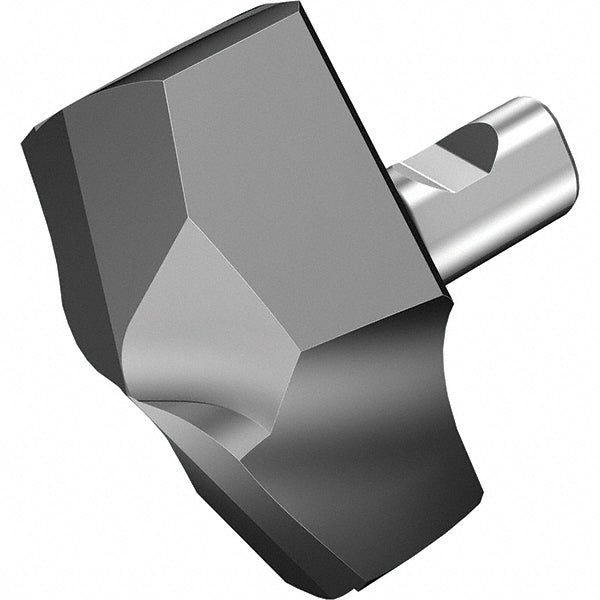

Carbide Insert, Grade 4334, TiAlN - Sandvik Coromant 7358160

Sandvik Coromant

Carbide Insert, Grade 4334, TiAlN - Sandvik Coromant 7358160

MFR# 7358160Series CoroDrill 870

$176.00List $225.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
Grade4334
CoatingTiAlN

Description

The Sandvik Coromant 7358160 is a carbide indexable insert, grade 4334, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsSolidDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.9449
Drill point angle142
Flute length (mm)11.00
Flute typeHelical
Functional length0.4480
Height (mm)15.00
Included angle degree142
Insert geometryPM
Insert holding methodClamp
Insert seat size24
Iso number870-2400-24-PM 4334
Manufacturer grade4334
Material gradeFine Grain
Number of flutes2
Overall length projection0.5905
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleCoroDrill 870
Tip materialSolid Carbide
