Carbide Insert, Grade 4334, TiAlN - Sandvik Coromant 7358184

Sandvik Coromant

Carbide Insert, Grade 4334, TiAlN - Sandvik Coromant 7358184

MFR# 7358184Series CoroDrill 870

$207.15List $265.68 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
Grade4334
CoatingTiAlN

Description

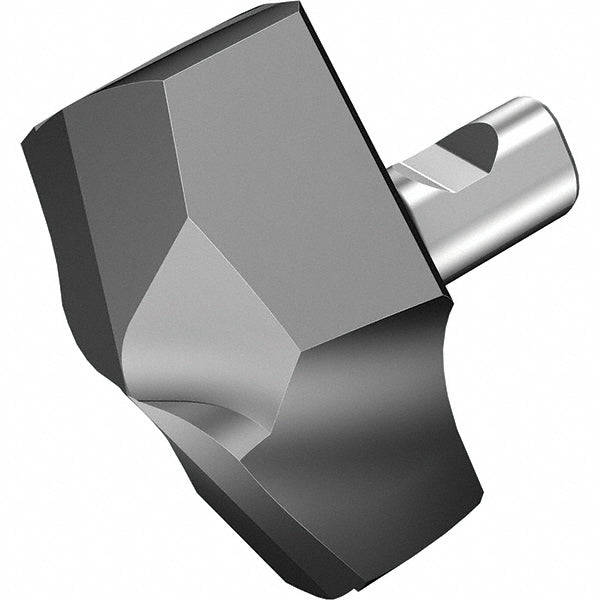

The Sandvik Coromant 7358184 is a carbide indexable insert, grade 4334, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsSolidDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in31/32in
Drill point angle142
Flute length (mm)11.00
Flute typeHelical
Functional length0.4441
Height (mm)15.00mm
Included angle degree142
Insert geometryPM
Insert holding methodClamp
Insert seat size24
Iso number870-2460-24-PM 4334
Manufacturer grade4334
Material gradeFine Grain
Number of flutes2
Overall length projection0.5906
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Spiral typeRegular Spiral
StyleCoroDrill 870
Tip materialSolid Carbide
