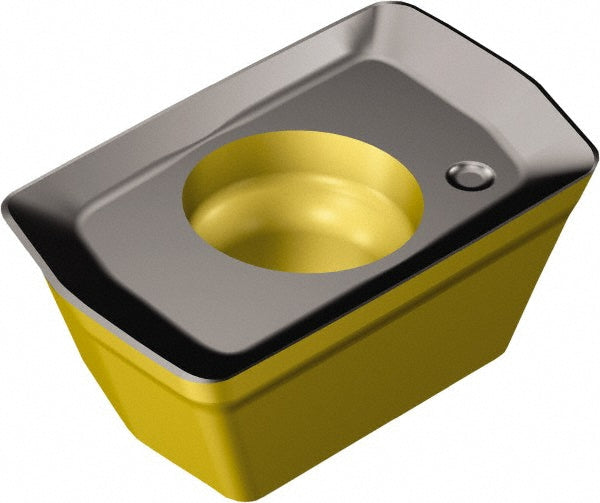

390R-070208M-PM 4330 Solid Carbide Insert, Grade 4330, TiCN - Sandvik Coromant 7564307

Sandvik Coromant

390R-070208M-PM 4330 Solid Carbide Insert, Grade 4330, TiCN - Sandvik Coromant 7564307

MFR# 7564307ISO/ANSI# 390R-070208M-PM 4330Cat# 390R-070208M-PM 4330Series 390

$21.22List $27.22 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade4330
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564307 is a 390R-070208M-PM 4330 solid carbide indexable insert, grade 4330, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi code390R-070208M-PM 4330
Chip breakerPM
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR390
Cutting edge styleCorner Rounded
Hole diameter0.0807
Included angle degree90
Inscribed circle0.1598
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size07
Insert size code070208
Insert style390
Iso code390R-070208M-PM 4330
Length0.2323
Length range0.0000 to 0.3200
Manufacturers catalog number390R-070208M-PM 4330
Manufacturer grade4330
Material applicationSteel; Cast Iron
Material gradeP30; M30; K30
Maximum depth of cut0.2283
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle30
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.0945
Thickness range0.0000 to 0.1000
Width0.1598
