R390-11 T3 02E-PM 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564360

Sandvik Coromant

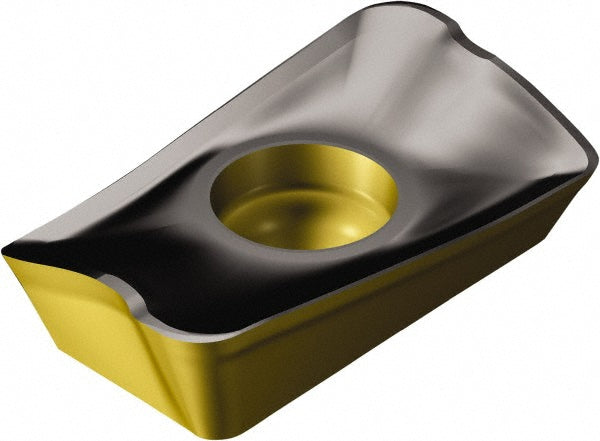

R390-11 T3 02E-PM 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564360

MFR# 7564360ISO/ANSI# R390-11 T3 02E-PM 4340Cat# R390-11 T3 02E-PM 4340Series R390

$31.96List $40.99 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade4340
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564360 is a R390-11 T3 02E-PM 4340 solid carbide indexable insert, grade 4340, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeR390-11 T3 02E-PM 4340
Chip breakerPM
Coating finishTiCN
Coating processCVD
Corner radius in1/128
Cutter series compatibilityM-32; R390
Cutting edge styleCorner Rounded
Hole diameter0.1102
Included angle degree90
Inscribed circle0.2677
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code11T302
Insert styleR390
Iso codeR390-11 T3 02E-PM 4340
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberR390-11 T3 02E-PM 4340
Manufacturer grade4340
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeP40; M40; K40
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle25
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1413
Thickness range0.1250 to 0.1500
Width0.2677
