Sandvik Coromant

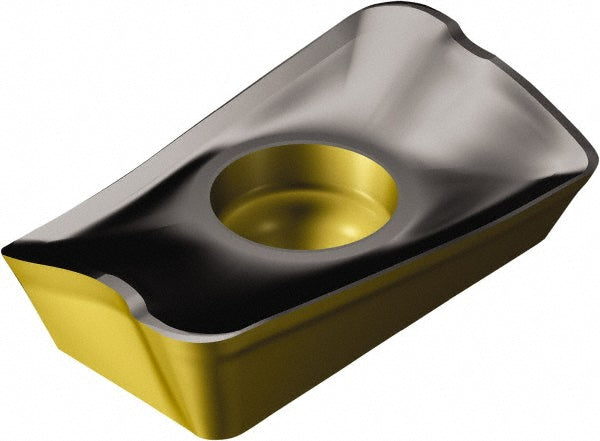

R390-11 T3 08M-PL 4330 Solid Carbide Insert, Grade 4330, TiCN - Sandvik Coromant 7564362
MFR# 7564362ISO/ANSI# R390-11 T3 08M-PL 4330Cat# R390-11 T3 08M-PL 4330Series R390
$30.42List $38.34
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
Grade4330
MaterialSolid Carbide
CoatingTiCN
Description
The Sandvik Coromant 7564362 is a R390-11 T3 08M-PL 4330 solid carbide indexable insert, grade 4330, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi codeR390-11 T3 08M-PL 4330
Chip breakerPL
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityM-32; R390
Cutting edge styleCorner Rounded
Hole diameter0.1102
Included angle degree90
Inscribed circle0.2677
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code11T308
Insert styleR390
Iso codeR390-11 T3 08M-PL 4330
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberR390-11 T3 08M-PL 4330
Manufacturer grade4330
Material applicationSteel; Cast Iron
Material gradeP30; M30; K30
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle25
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1413
Thickness range0.1250 to 0.1500
Width0.2677
