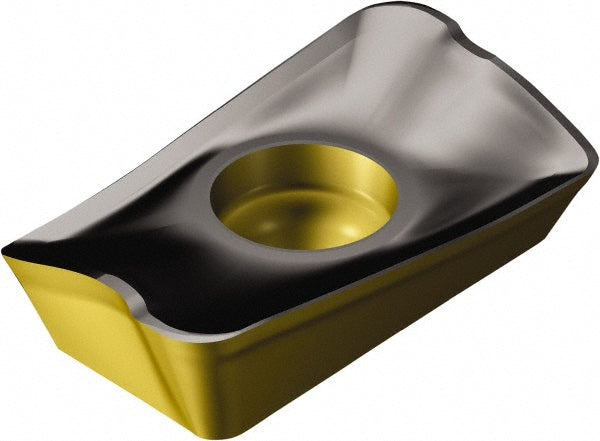

R390-17 04 08M-PL 4330 Solid Carbide Insert, Grade 4330, TiCN - Sandvik Coromant 7564379

Sandvik Coromant

R390-17 04 08M-PL 4330 Solid Carbide Insert, Grade 4330, TiCN - Sandvik Coromant 7564379

MFR# 7564379ISO/ANSI# R390-17 04 08M-PL 4330Cat# R390-17 04 08M-PL 4330Series R390

$26.02List $33.37 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade4330
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564379 is a R390-17 04 08M-PL 4330 solid carbide indexable insert, grade 4330, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeR390-17 04 08M-PL 4330
Chip breakerPL
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR390
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170408
Insert styleR390
Iso codeR390-17 04 08M-PL 4330
Length0.6181
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-17 04 08M-PL 4330
Manufacturer grade4330
Material applicationSteel; Cast Iron
Material gradeP30; M30; K30
Maximum depth of cut0.6299
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle23
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3780
