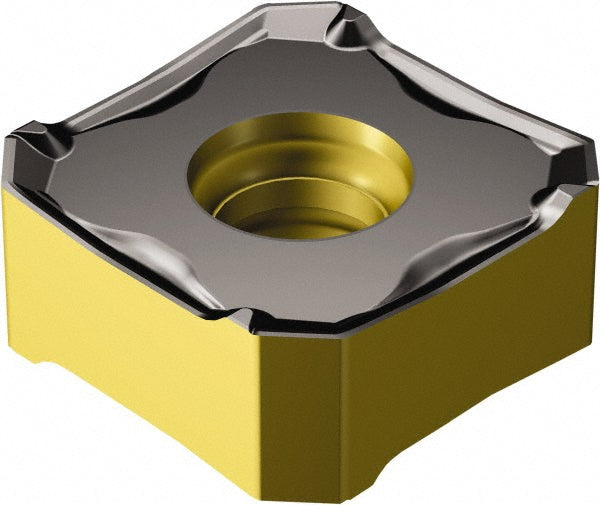

345R-1305M-PM 4330 Solid Carbide Insert, Grade 4330, TiCN - Sandvik Coromant 7564424

Sandvik Coromant

345R-1305M-PM 4330 Solid Carbide Insert, Grade 4330, TiCN - Sandvik Coromant 7564424

MFR# 7564424ISO/ANSI# 345R-1305M-PM 4330Cat# 345R-1305M-PM 4330Series 345

$28.71List $36.83 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade4330
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564424 is a 345R-1305M-PM 4330 solid carbide indexable insert, grade 4330, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi code345R-1305M-PM 4330
Chip breakerPM
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibility345
Cutting edge styleCorner Rounded
Hole diameter0.1890
Included angle degree90
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code1305
Insert style345
Iso code345R-1305M-PM 4330
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog number345R-1305M-PM 4330
Manufacturer grade4330
Material applicationSteel; Cast Iron
Material gradeP30; M30; K30
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle24
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1988
Thickness range0.1850 to 0.2000
Width0.5118
