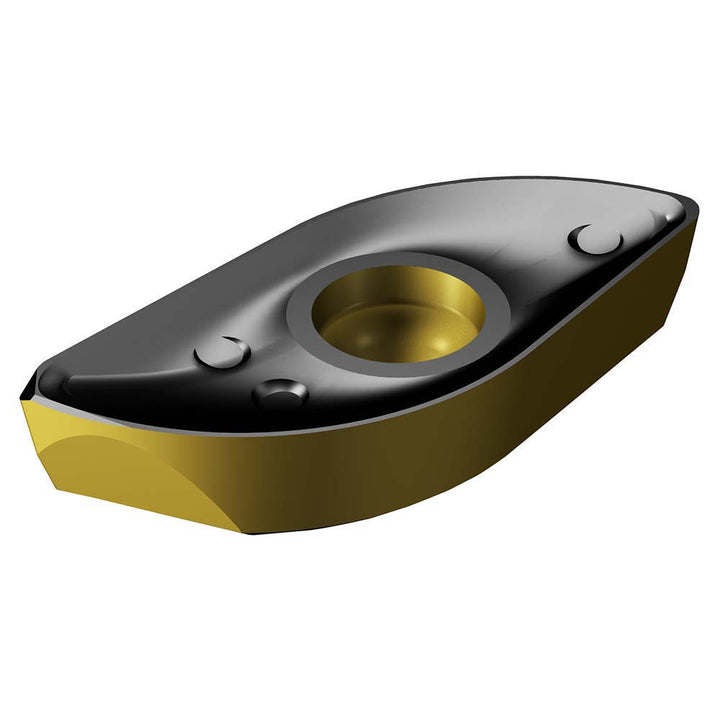

R216-20 T3 M-M 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564464
MFR# 7564464ISO/ANSI# R216-20 T3 M-M 4340Cat# R216-20 T3 M-M 4340Series R216
$53.57List $67.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeBall Nose
Grade4340
MaterialSolid Carbide
CoatingTiCN
Description
The Sandvik Coromant 7564464 is a R216-20 T3 M-M 4340 solid carbide indexable insert, grade 4340, TiCN coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi codeR216-20 T3 M-M 4340
Chip breakerM
Coating finishTiCN
Coating processCVD
Convex radius0.3937
Cutter series compatibilityR216
Hole diameter0.1575
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size20
Insert size code20T3
Insert styleR216
Iso codeR216-20 T3 M-M 4340
Length0.7047
Length range0.7000 to 0.9000
Manufacturers catalog numberR216-20 T3 M-M 4340
Manufacturer grade4340
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeP40; M40; K40
Maximum depth of cut0.7047
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
