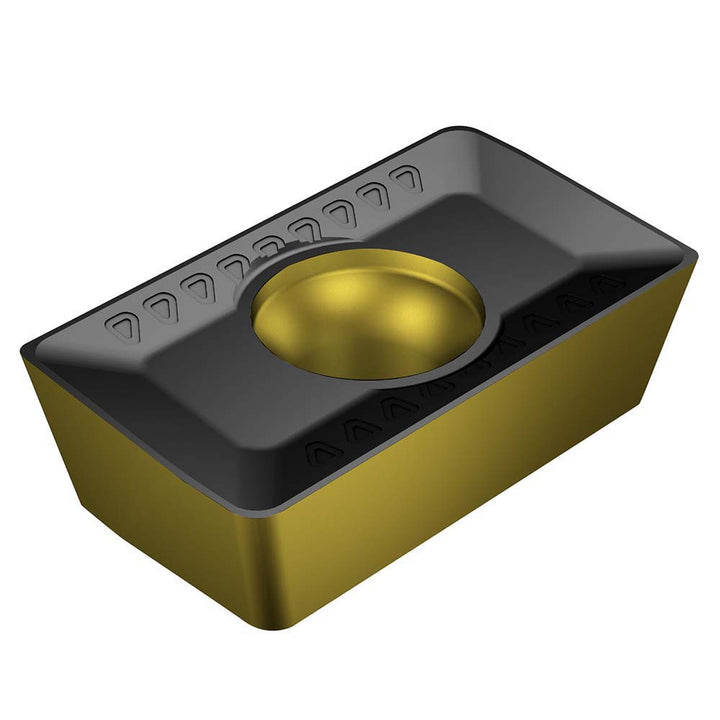

APMT 16 04 08-M 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564465

Sandvik Coromant

APMT 16 04 08-M 4340 Solid Carbide Insert, Grade 4340, TiCN - Sandvik Coromant 7564465

MFR# 7564465ISO/ANSI# APMT 16 04 08-M 4340Cat# APMT 16 04 08-M 4340Series APMT

$25.89List $33.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeParallelogram
Grade4340
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 7564465 is a APMT 16 04 08-M 4340 solid carbide indexable insert, grade 4340, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeAPMT 16 04 08-M 4340
Chip breakerWHX
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR216
Cutting edge styleCorner Rounded
Hole diameter0.1732
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1604
Insert styleAPMT
Iso codeAPMT 16 04 08-M 4340
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberAPMT 16 04 08-M 4340
Manufacturer grade4340
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeP40; M40; K40
Maximum depth of cut0.6299
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in3/8
